Description
MAIN FEATURES:
-Exceptionally easy system setup via an LCD user interface.
-Supports inward- and outward-opening gates without needing mechanical end-stops.
-High push force.
-Full position control.
-Fast operating speed, with smooth acceleration and deceleration.
-Safe anti-crushing protection.
-Multiple operating features including Intruder-detection Alarm Modes (a world first).
-Onboard CENTURION code-hopping multichannel receiver with selective add and delete.
-Battery backup for uninterrupted operation during power failures.
MODELS:

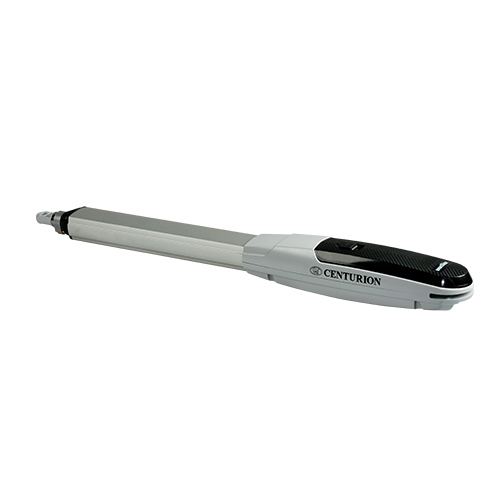

-VANTAGE 400 – Reliable operator with a shorter stroke for the majority of domestic swing gate applications.
-VANTAGE 500 – Extended stroke for larger domestic and light-industrial swing gate applications.
VANTAGE TECHNICAL DATA:
DESCRIPTION
Input Voltage 90v – 240V AC +/- 10%, 50/60Hz [*]
Motor Voltage 12V DC
Motor Power Supply Battery-driven [**] 1.8A Charger
Push Force – Max 250kgf
Typical Gate Opening Time V400 (short stroke) 14.3 sec / V500 (long stroke) 17.8 sec (V500)
Duty Cycle – Mains Present 50% [***]
Daily Operations – Max 250
Maximum Leaf Width for Corresponding Gate Mass (90° opening) [****] V400 ,2.5m = 500kg <4m = 150kg V500 ,2.5m = 750kg <4m = 230kg
Onboard Receiver Specification CENTURION code-hopping, multichannel, 433MHz, Capacity - 65 transmitter buttons
[*] – Can operate off a solar supply, consult Centurion Systems for assistance. [**] – 7Ah battery (can be upgraded for longer power failure autonomy). [***] – Based on 25°c ambient temperature and unit not in direct sunlight. [****] – An electric lock must be fitted to the gate leaves 2.5m and over to secure gate in the closed position.
