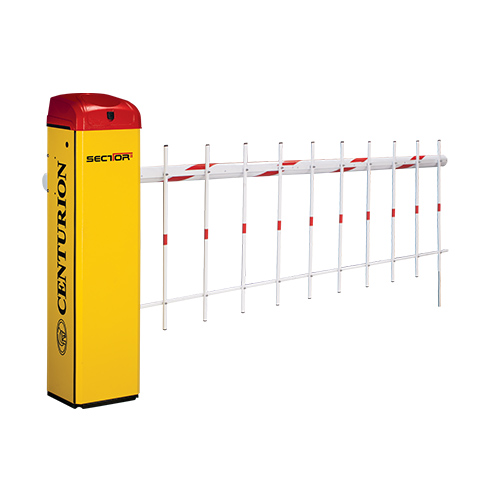

Description
MAIN FEATURES:
-Clever design and tough construction prevents fence from being pushed aside.
-Quick and easy to install – saving you time and money.
-All-weather materials ensuring a long, good-looking lifespan.
-Intelligent, modular design for ease of transportation and installation.
-Semi-assembled modules with comprehensive installation kit.
TRAPEX TECHNICAL DATA:
INSTALLATION CONSIDERATIONS – SECTOR BARRIERS
BOOM POLE LENGTH REQUIREMENTS
Existing Installation:
All Lengths TRAPEX cannot be used with the SECTOR Breakaway Coupling on the same barrier pole.
3.0m The counterbalance spring in the 3m SECTOR barrier must be upgraded to a 4.5m unit. ref:1187M01050A The running speed of the SECTOR operator must be reduced to correspond to that of a 4.5m barrier (raise/lower time to change from 1.2 to 3 seconds)
4.5m The counterbalance spring in the 4.5m SECTOR barrier must be upgraded to a 6.0m unit. ref: 1187M010500
6.0m It is not possible to fit TRAPEX to a 6m SECTOR barrier
New Installation:
All Lengths TRAPEX cannot be used with the SECTOR Breakaway Coupling on the same barrier pole
3.0m A 4.5m SECTOR barrier must be ordered for this application with a 3m boom pole of TRAPEX
4.5m A 6m SECTOR barrier must be ordered for this application with a 4.5m boom pole of TRAPEX
6.0m It is not possible to fit TRAPEX to a 6m SECTOR barrier
TRAPEX DIMENSIONS & MATERIALS:
-Modular sections length: 1.5 metres, pre-assembled.
-Vertical members: six per 1.5m length @ 250mm spacing.
-Vertical member length that extends above barrier pole: 95mm.
-Vertical member length below barrier pole: 692mm.
-Fence members: Ø19 aluminium round tube.
-Mass: 1.3kg/m (1.5m module = 2kg).
-Aluminium flatbar section: 25mm x 5mm.
-Rivets used to fit the aluminium flatbar: 5mm.
-It’s advisable to lubricate the moving parts of the linkage assembly with easy to obtain Q20.
